Semi Automatic Milk Powder Auger Bottle Bag Filling Packing Machine

11/12/2023

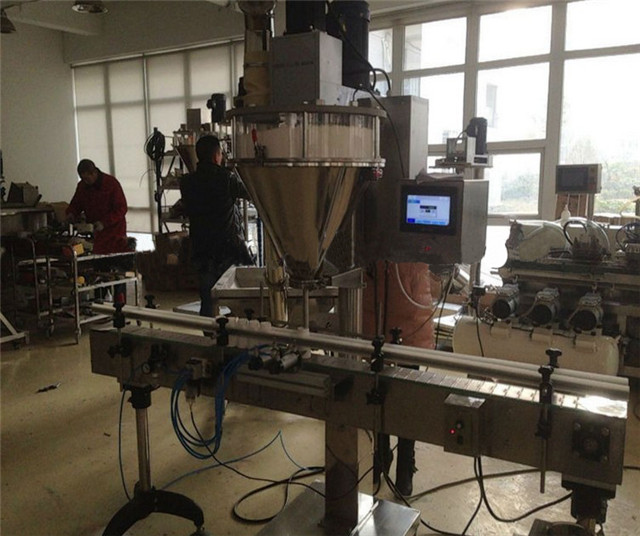

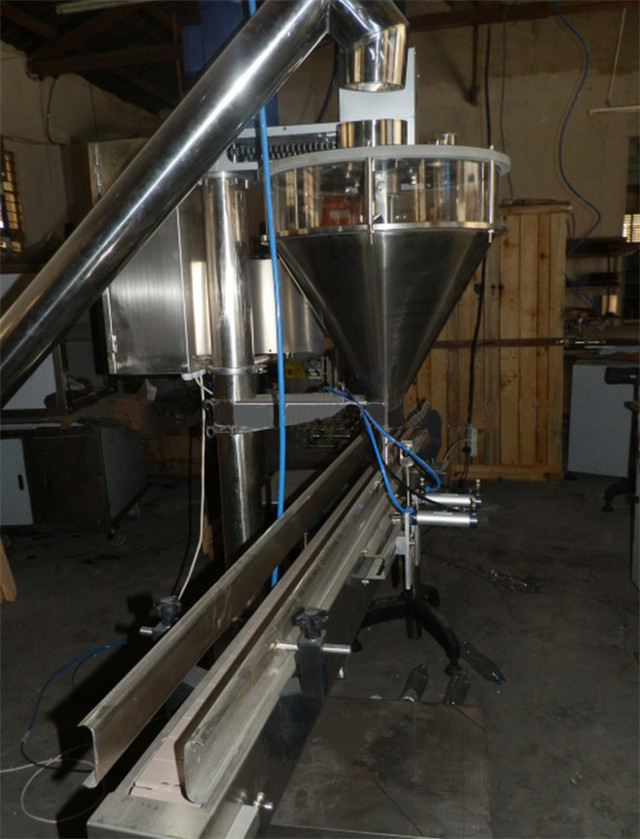

This semi automatic powder filling machine for bottles&bags is an economic applicable automatic powder and grain filling machine, can complete locate the bottle, filling and metering automatically, It consists of a filling head, a chain plate conveyor belt and a positioning device, adopt the servo (or step) motors, PLC and touch screen control, simple operation, high stability. To unscramble bottle machine, screw cap machine, labeling machine, etc of a complete set of filling line.Suitable for packing powder and small granular materials, such as powder, small granules drugs, veterinary medicine, glucose, seasoning, solid beverage, carbon powder, talcum powder, pesticide, etc.

1. All the main parts ,except the motor, are made of stainless steel,composite transparent hopper,easy to clear.

2. Adopts servo (or step) motor driven,difficult to wear out, accurate positioning,manual control and stable working performance.

3. Adopt PLC control, stable work performance, high precision

4. English and Chinese Touch screen,shows the working state, operating instructions , fault status and production statistics clearly, very easy to operate.

5. Has the record function for the powder ingredients, could be storaged for later use. At most could record 10 ingredients.

6. By replacing the screw,the machine is also workable for either powder or some small granular material

7. Installation of centrifugal device to make sure higher packing precision of some good fluidity material

8. As to powder material,can also equipped with the dust collection device to make sure good working environment.

Basic parameter

Counting way: Auger
Precision: Error≤±1%
Packing speed: 20-40bottles/min
Power supply: 3 phase 380V 50-60Hz
Power: 1.2Kw
Air pressure: 5-8kg/cm3
Conveyor width: 150mm
Conveyor length: 220cm
Conveyor stainless steel thickness: 1.5mm
Weight: 220Kg
Size: 2000×850×1850
