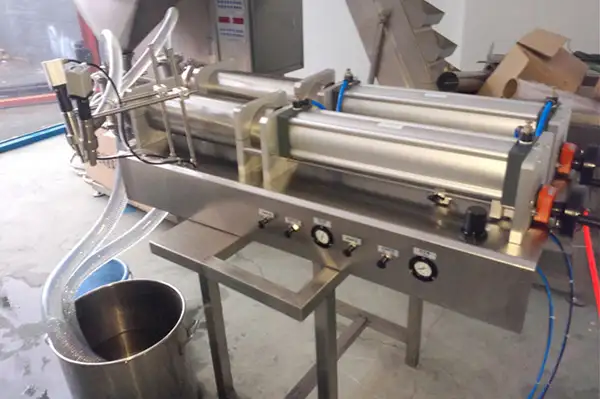

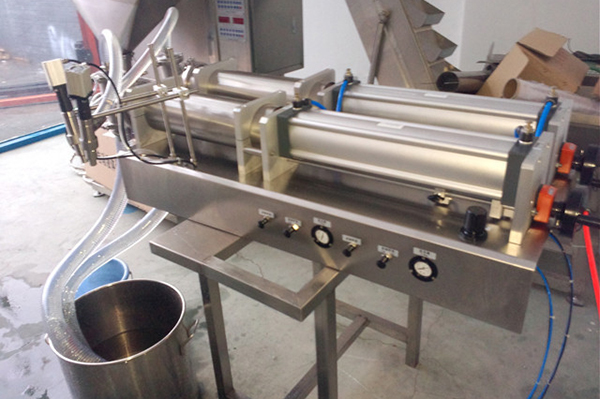

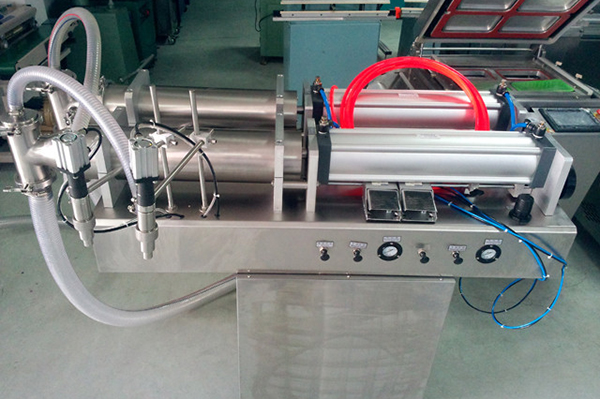

Semi Automatic Double Heads Pneumatic Cream Thinner Filler Equipment

5 Liters filling volume double heads fully pneumatic cream thinner high viscosity filling machine explosion-proof semi automatic filler machinery

This machine is used for filling cream or paste or liquid with thick-viscosity like skin care cream lotion thinner paint etc.

Parameter

Voltage: 220V/60Hz, 110V/50Hz
Air pressure: 0.4-0.6MPa
Filling speed: ≤3000pcs/Hour
Hopper Capacity: 50L

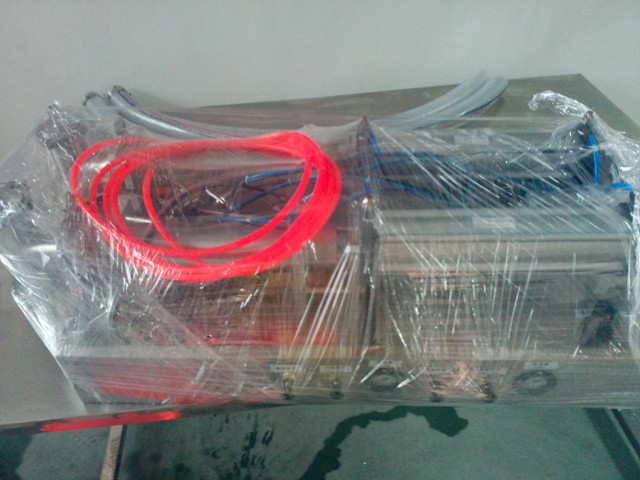

Shipping package size: 950*420*380mm
Tank shipping package size: 450*450*500mm
Filling accuracy: ≤±1%
Filling Range: 1000-5000ml
Filling Heads: double heads
Weight of the packing machine: 90KG

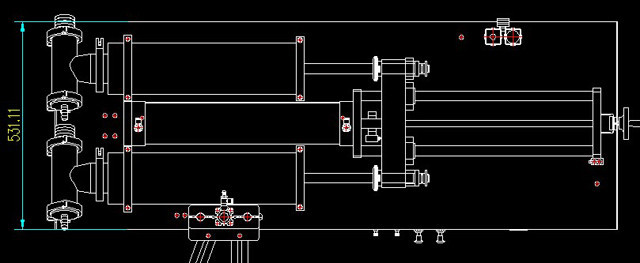

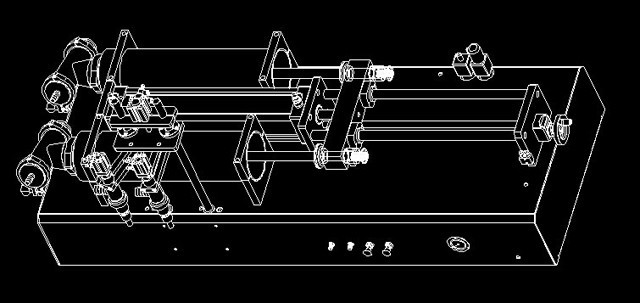

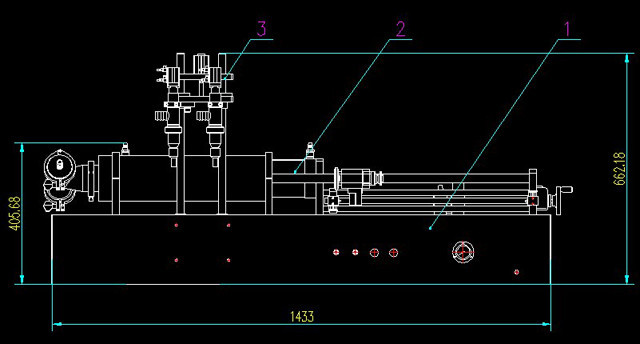

Drawing

Principle of pneumatic filler equipment

Wearing Parts: Silica gel O-ring System (when delivery, I will prepared enough for you use in one year. Customer can buy in the future in their country)

Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.

Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components. Some contact materials are used 304 stainless steel materials, in line with the GMP requirements.

Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Features

This machine adopts full pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.

The machine is suitable for filling food trades(such as: pearl milk tea, thick broad-bean sauce, chili sauce, peanut sauce etc); cosmetics(shampoo, frost shower, gel); daily health product (toothpaste etc)

The machine adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment.
