Semi Automatic Oval Bottle Rolling Custom Labeling Machine
oval bottle rolling custom labelling machine labeller with step motor driving method
Technical Parameters
Labeling accuracy: ±0.2mm
Labeling speed: 10～25Pieces / min
Applicable Dimensions (Length): 20mm～250mm
Applicable Product Size (Width): 20mm～150mm
Applicable Dimensions (Height): 0.2mm～120mm
Applicable Label Size Length: 15mm～250mm Width: 15mm～150mm
Inner diameter of label roll: Φ76 mm
Label largest diameter: Φ280mm
Dimensions (L × W × H): 850mm×410mm×720mm
Power supply: 220V/110V 50HZ/60Hz
Total Power: 300W
The model VK-LM520A rolling labeling machine semi automatic customized oval flat plastic bottles is the updated version based on model VK-LM520 by replacing the pneumatic driving part with the stepping motor .With stepping motor the model VK-LM520A labeling machines work in a more stable way. The highly-performance machines labeling is specially designed for oval soft plastic bottles in order to avoid the insufficient labels in edge or lower accuracy labeling for irregular bottles.

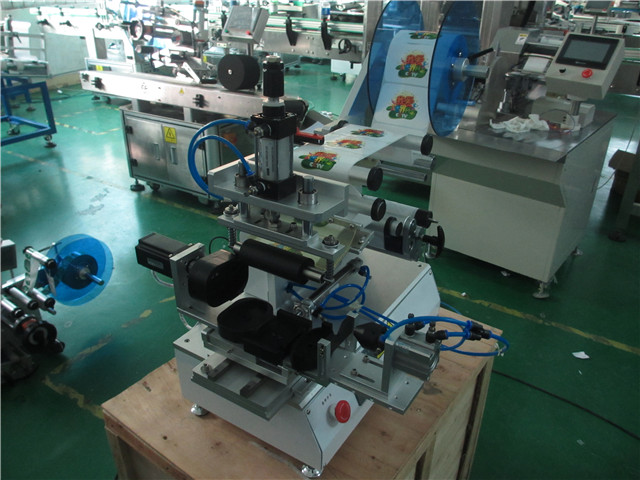

Below is the overall view for rolling labeling machine model VK-LM520/A series

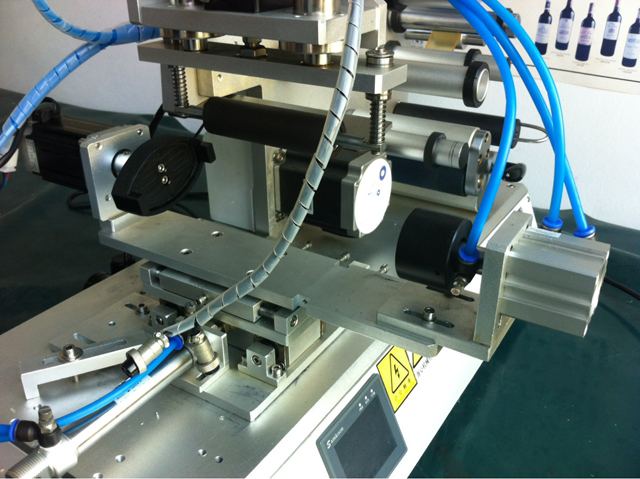

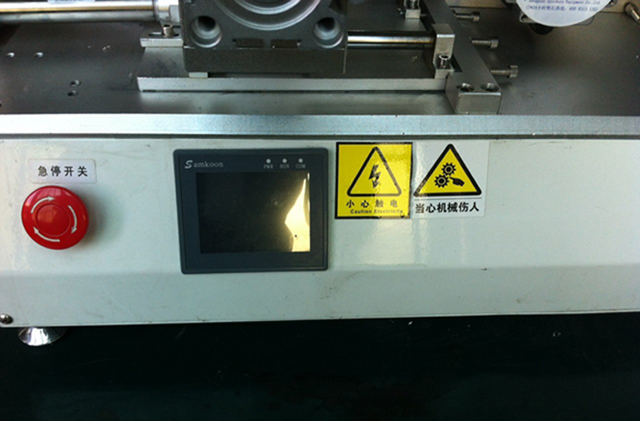

More photos on semi automatic plane surface labeling machine semi automatic model VK-LM520A
Applies to products on flat or curved, concave labeling, labeling accuracy up to ± 0.2mm, mainly used in electronic components, precision labeling of digital products, such as SD cards, cell phone batteries, FPC, mobile phone charger labeling and so on. Precision labeling, highlighting the excellent quality of products, improve competitiveness.
Optional features for labeling machine custom rolling labeler equipment semi automatic for plane&oblong bottles objects:

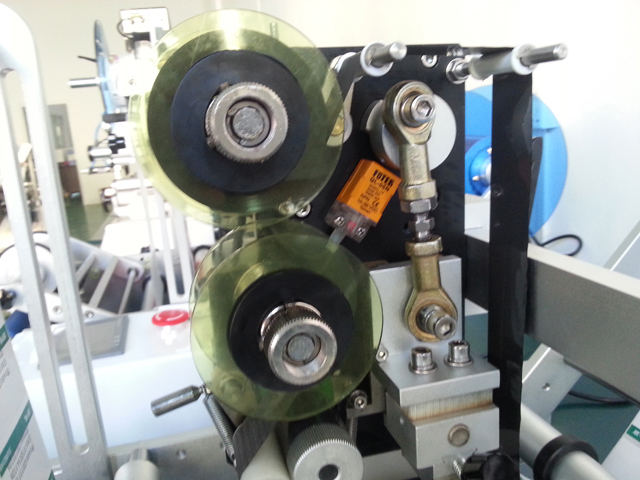

Coder: thermal coder word tablets print production date, expiration date, batch number and other information.
Scope of customized labeling machine rolling labeler equipment model VK-LM520A
Applicable Label: Label, electronic monitoring code, bar code, etc.
Application: require flat or curved, circular surface, concave, convex, or other surface attached label.
Industry: Widely used in food, toys, cosmetics, electronics, pharmaceutical, metal, plastic, printing and other industries.
Applications: SD card labeling, labeling and other batteries. (Canon Charger: no bubbles)
Working Process
Core principle: This principle is part of our R & D alone, if interested, please inquire.
Procedure: put the product -> Labeling and covered standard (device automatically) -> Remove any labeling products.
Technical Parameters of VK-LM520
Model: VK-LM520
Labeling accuracy: ±0.2mm
Labeling speed: 10～25Pieces / min
Applicable Dimensions (Length): 20mm～250mm
Applicable Product Size (width): 20mm～150mm
Applicable Dimensions (height): 0.2mm～120mm
Applicable Label Size Length: 15mm～250mm Width: 15mm～150mm
Inner diameter of label roll: Φ76 mm
Label largest diameter: Φ280mm
Dimensions (L × W × H): 850mm×410mm×720mm
Power supply: 220V 50HZ
Total Power: 145W
Pressure (Mpa): 0.4～0.6Mpa
Features on semi automatic bottles labeling machine model VK-LM520A
- Precision, domestic original labeling technology, labeling accuracy of ± 0.2mm, meet the needs of high-precision labeling;
- Easy to operate, stripping standard, standard delivery, suction mark, labeling and other actions automatically cover standard, manual loading to complete the labeling process;
- Safety, transmission components wrapped with pneumatic circuit arranged separately, to avoid an exception occurs, the use of safer;
- High stability, using stepper motors + PLC + electronic control system consisting of fiber optic sensors, equipment stability, long time working;
- Optional automatic scale turntable device, can significantly improve the efficiency of loading and unloading, improve labeling efficiency;
Optional features and components
① automatic feeding function;
② automatic rewinding function (combination of product considered);
③ other features (according to customer requirements).

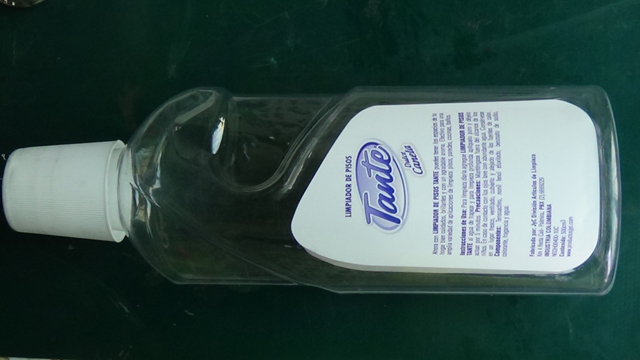

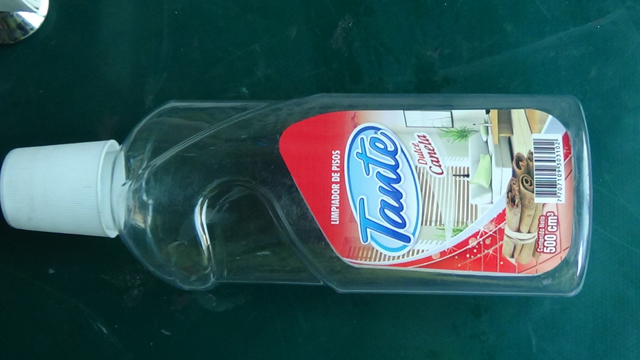

Final labeling product from VK-LM520A oval bottles labeling machine semi automatic:
